Heavy Duty Shelf

MAXEL Heavy Duty Shelf units ~ is an ideal for high density storage. Weight capacity of 500-700 kgs per unit shelf depending upon size**.
Adjustable and repositioned on 1” (25mm) increments for maximum versatility. Open design minimizes moisture and dust accumulation; allow free air circulation.

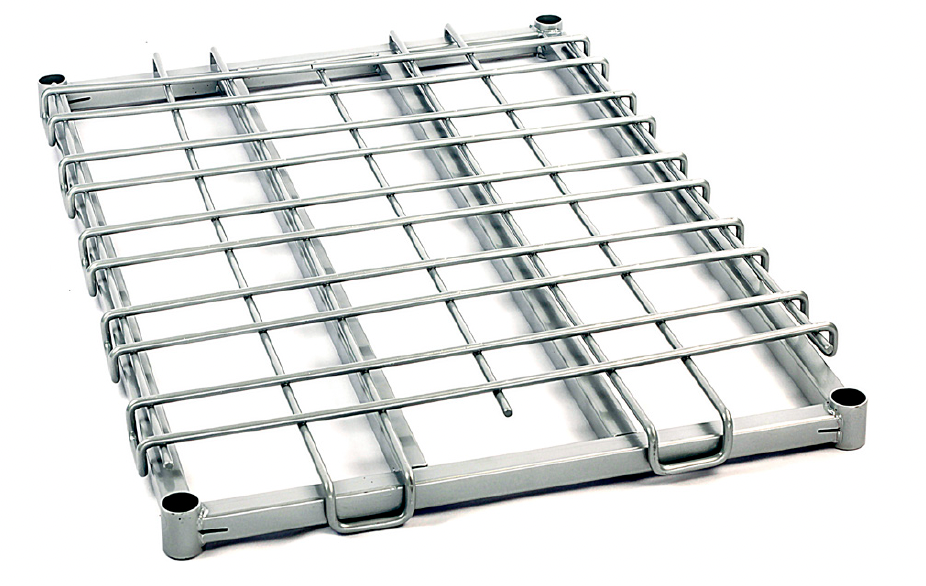

Dunnage Shelf ~ Constructed of 1” square steel tubing with removable wire decking.

Width X Length

Cat No.	(IN.)	(MM.)
DS2430 *	24 X 30	610 X 756
DS2436 *	24 X 36	610 X 908
DS2448 *	24 X 48	610 X 1213
DS2460 *	24 X 60	610 X 1518

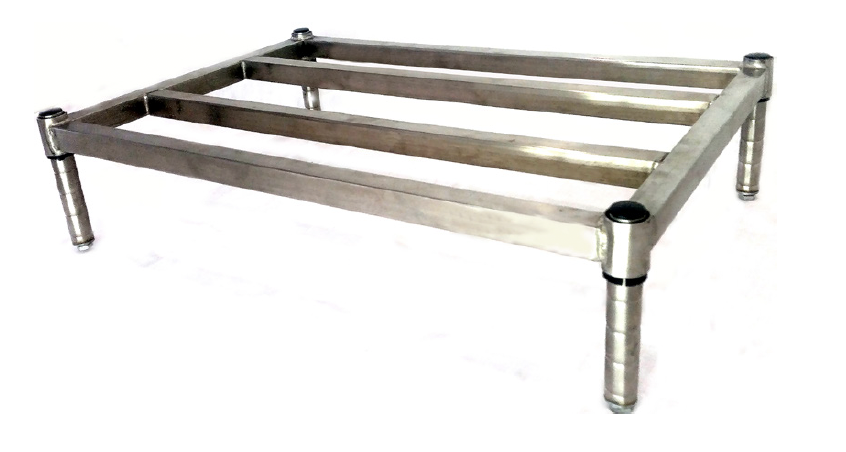

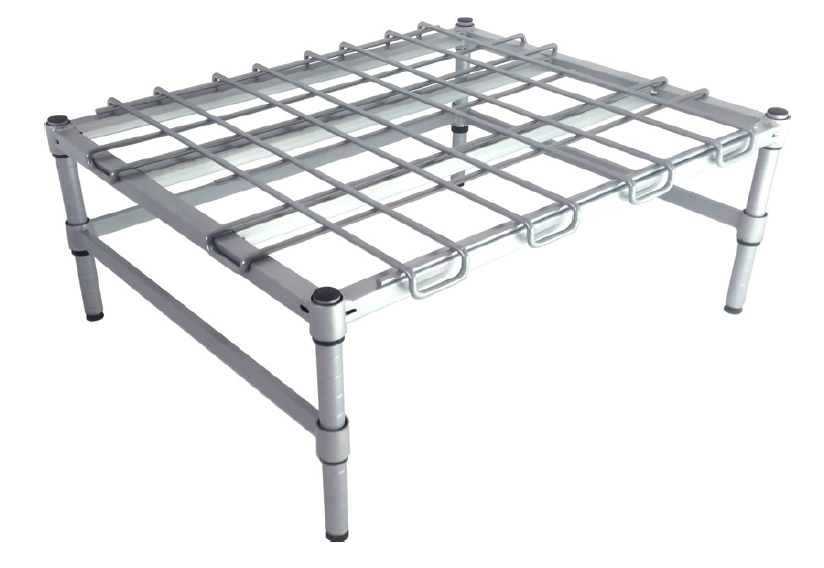

MAXEL Heavy Duty Dunnage Racks ~ maximizes storage space, which allowing you to keep floor clean. Heavy Duty Dunnage Rack includes a removable top deck, a three sided frame (for Height 12” series onwards) and adjustable floor levering nuts.
Stainless Steel finishing is also available in the height of 6” (150mm) and 12” (300mm) .

Width X Length X Height

Cat No.	(IN.)	(MM.)
DS2430 *8	24 X 30 X 8	610 X 756 X 200
DS2436 *8	24 X 36 X 8	610 X 908 X 200
DS2448 *8	24 X 48 X 8	610 X 1213 X 200
DS2460 *8	24 X 60 X 8	610 X 1518 X 200
DS2430 *12	24 X 30 X 12	610 X 756 X 300
DS2436 *12	24 X 36 X 12	610 X 908 X 300
DS2448 *12	24 X 48 X 12	610 X 1213 X 300
DS2460 *12	24 X 60 X 12	610 X 1518 X 300

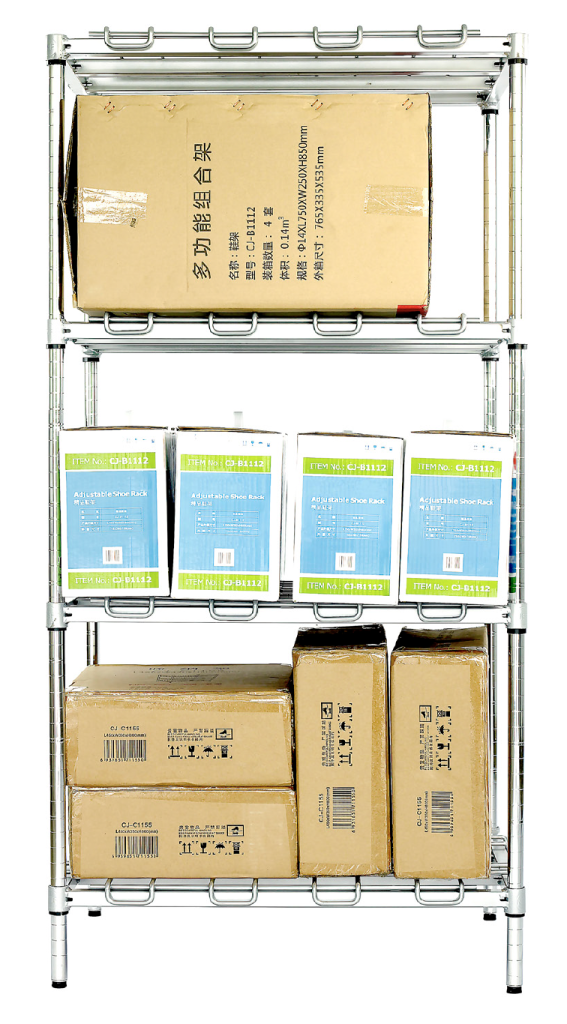

MAXEL Heavy Duty Shelf Starter Units ~ consists of four (4) posts and four (4) shelves in the height and shelf size indicated.

Width X Length x Height

Cat No.	(IN.)	(MM.)
D2430 *60	24 X 30 X 60	610 X 756 X 1500
D2436 *60	24 X 36 X 60	610 X 908 X 1500
D2448 *60	24 X 48 X 60	610 X 1213 X 1500
D2460 *60	24 X 60 X 60	610 X 1518 X 1500
D2430 *70	24 X 30 X 70	610 X 756 X 1800
D2436 *70	24 X 36 X 70	610 X 908 X 1800
D2448 *70	24 X 48 X 70	610 X 1213 X 1800
D2460 *70	24 X 60 X 70	610 X 1518 X 1800

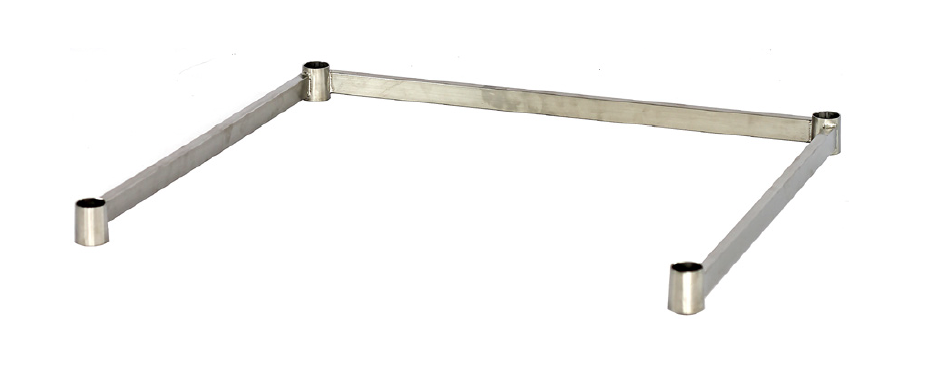

Hollow Three Sided Frame

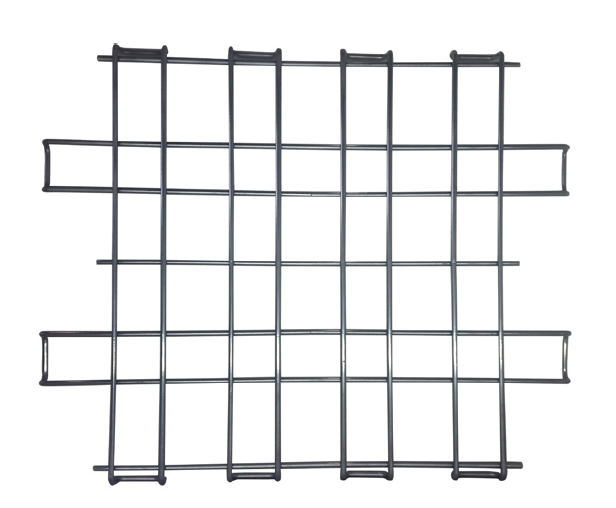

Dunnage Wire Mesh

Select a finish and place the suffix into “*” (with Cat No.)

Finish	Suffix
Poly Brite EZ	EZ
Poly Green	GZ
Stainless Steel	S

For special sizes and/or special colour coating of shelf, please consult MAXEL local sales representative.
