Finishing Type

Eco Chrome Series

Economically priced.
The Eco Chrome Series has an electro-plated nickel-chrome finish. This economically priced series has a quality finish that is designed for medium-weight display and dry storage.

Chrome Series

Attractive & High-Tech Look.
Chrome has an electroplated nickel-chrome finish. This attractive & high-tech look finish is hard and durable at an economical price. This finish has proven to be a favourite and is perfect for display and dry storage.

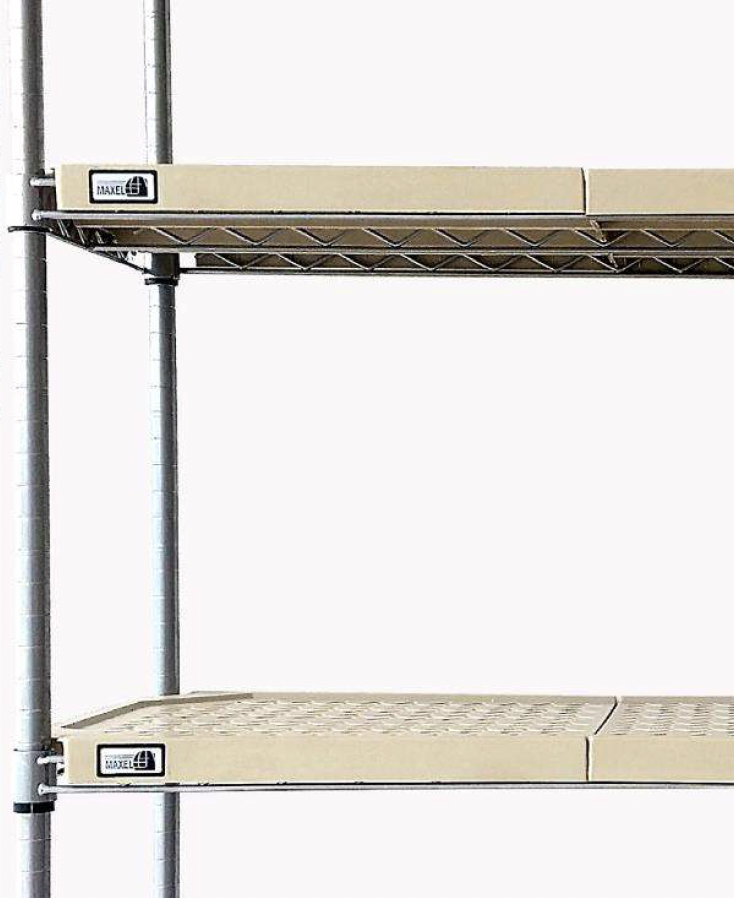

ABS Plastic Mat Series

Antimicrobial Protection & Easy Maintenance.
Plastic Mat and its frame contain antimicrobial agents that could protect the finishes from bacteria, viruses, mold, fungi and other disease organisms. This finish can be used in any environment (-29°C to 49°C) and the removable mat could ensure its cleanliness.

Poly Green

10-Year Rust & Corrosion Warranty.

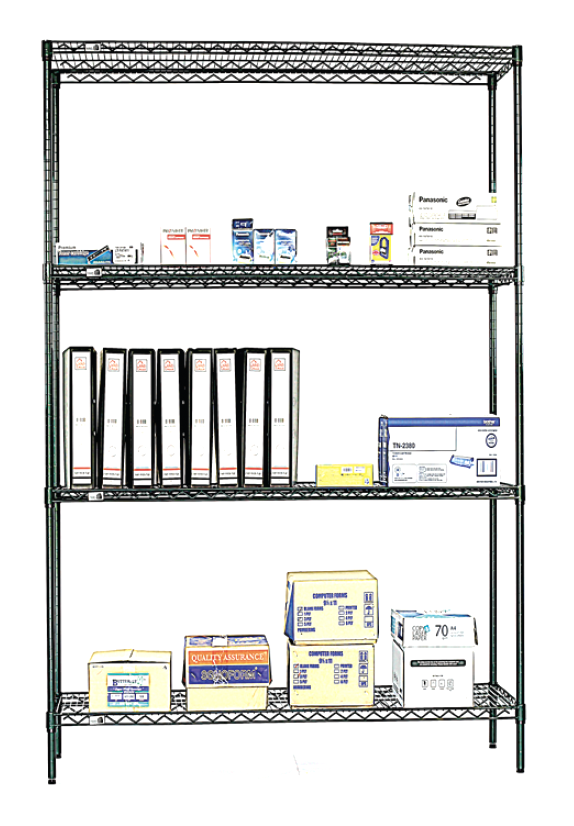

Poly Green features green powder epoxy coated over zinc-chromate electroplating with Microban antimicrobial product protection, which is built-in during the manufacturing process. It is designed to last for the life of the product. It utilizes an antimicrobial additive that is effective against a wide range of bacteria, mold and fungi which may cause odors, stains and product degradation. Poly Green’s finish is ideal for dry, freezer and cooler storage.

Poly Brite

3-Year Rust Warranty – Durable & Reliable.
The improved version of Poly Brite comes with 3 years warranty against rust. Poly Brite features silver powder epoxy coated over zinc-chromate electroplating that ensures a strong, durable finish. This series is able to handle extreme temperatures and moist environments better. Poly Brite’s finish is ideal for dry, freezer and cooler storage.

Stainless Steel​

Rust & Corrosion Resistant.
Stainless steel features electropolishing on its surface, providing durability and a long-lasting finish. It can handle all moisture and temperature extremes, making it ideal for all types of storage requirements. Stainless steel resists rust and corrosion, making it an excellent choice for various environments.

How to choose your shelving system

Select a right and prefect shelving system will improve productivity and efficiency of the operation. Understanding and considering the following factors makes it much easier to choose a perfect combination of shelving system.



The physical of stores ~ Understand the dimensions and quantities of the stocks you wish to store. The chosen shelving system must align with the storage needs to ensure a neater storage area and easier product location.



The capacity of shelving system ~ The heavier stores, the higher density and stronger shelving systems you need.

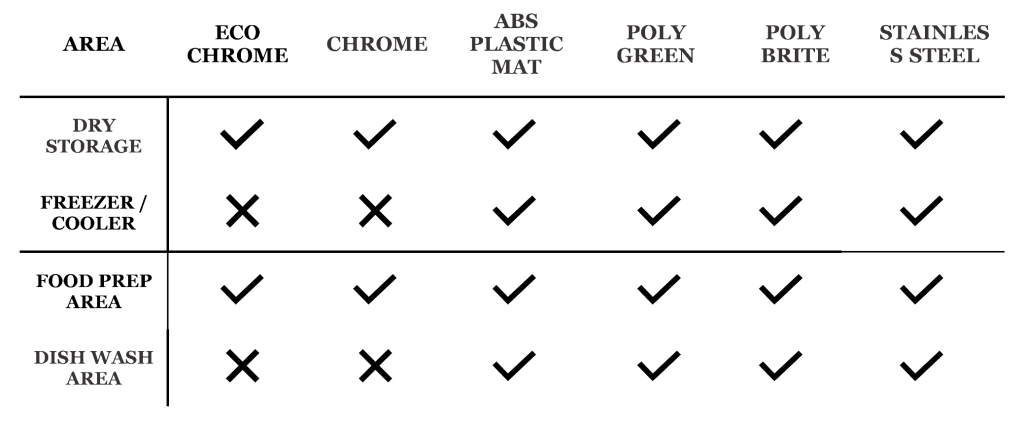

The environment of storage area ~ Freezer and coolers storage area require rust and corrosion prevention. Eco Chrome and Chrome series are only suitable for dry storage.



Available space and configuration ~ You need to take an accurate measurement of the space and configuration of storage area. Wall systems can help maximize floor storage areas.



The accessibility and visibility of storage ~ The design of shelving system directly impacts the visibility and accessibility of storage. Choose the right shelving system to make stock.

Wire Shelf

Adjustable ~ Shelves easily adjusted and repositioned on 1” (25mm) increments that cater to your needs. Unique Design – Open wire truss design minimizes moisture and dust accumulation; allow free air circulation, greater merchandise visibility.
Width X Length

Cat No.

(IN.)

(MM.)

S1424 *

14 X 24

355 X 610

S1430 *

14 X 30

355 X 756

S1436 *

14 X 36

355 X 908

S1442 *

14 X 42

355 X 1060

S1448 *

14 X 36

355 X 1213

S1454 *

14 X 48

355 X 1364

S1460 *

14 X 60

355 X 1518

S1472 *

14 X 72

355 X 1823

S1824 *

18 X 24

457 X 610

S1830 *

18 X 30

457 X 756

S1836 *

18 X 36

457 X 908

S1842 *

18 X 42

457 X 1060

S1848 *

18 X 48

457 X 1213

S1854 *

18 X 54

457 X 1364

S1860 *

18 X 60

457 X 1518

S1872 *

18 X 72

457 X 1823
Width X Length

Cat No.

(IN.)

(MM.)

S2124 *

21 X 24

533 X 610

S2130 *

21 X 30

533 X 756

S2136 *

21 X 36

533 X 908

S2142 *

21 X 42

533 X 1060

S2148 *

21 X 36

533 X 1213

S2154 *

21 X 48

533 X 1364

S2160 *

21 X 60

533 X 1518

S2172 *

21 X 72

533 X 1823

S2424 *

24 X 24

610 X 610

S2430 *

24 X 30

610 X 756

S2436 *

24 X 36

610 X 908

S2442 *

24 X 42

610 X 1060

S2448 *

24 X 48

610 X 1213

S2454 *

24 X 54

610 X 1364

S2460 *

24 X 60

610 X 1518

S2472 *

24 X 72

610 X 1823

Posts

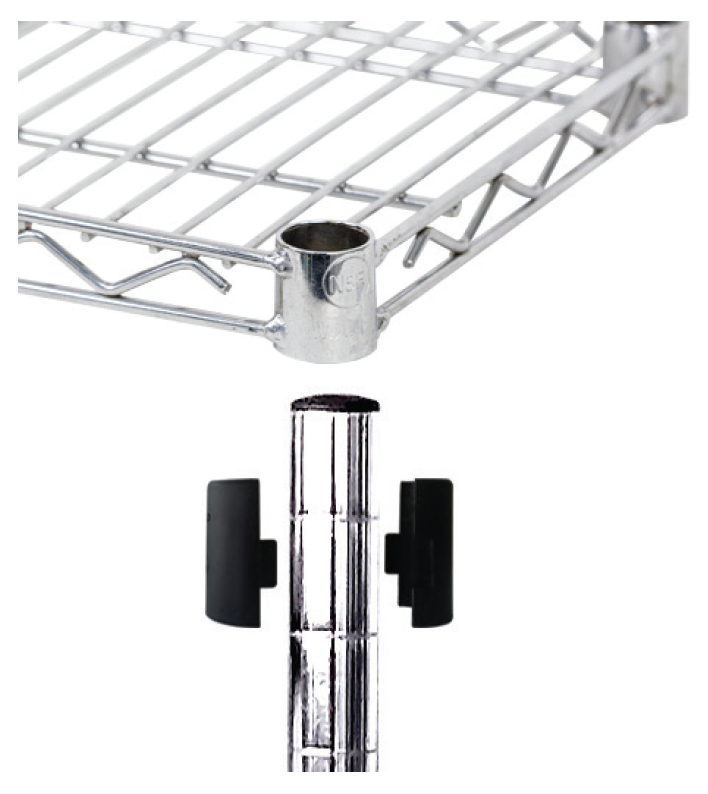

Rugged 1” diameter steel post is grooved. Shelves adjust on 1” increments. Shelf clips snap on posts, allowing shelf collar to slide over for a secure fit. Floor levelling bolt included to compensate for uneven surfaces. Special length posts are available.**

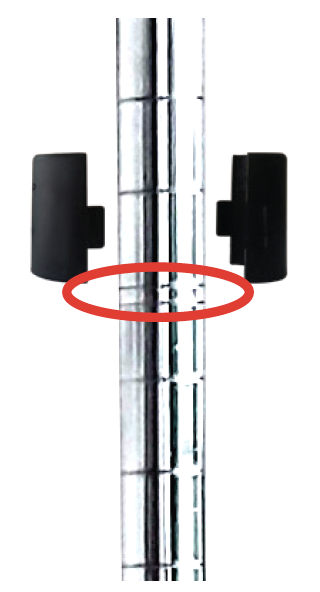

Posts are double-grooved every 8” for easy identification

Length X Height

Cat No.

(IN.)

(MM.)
P6 * 6″ 150
P8 * 8″ 200
P12 * 12″ 300
P20 * 20″ 515
P24 * 24″ 600
P25 * 25″ 654
P33 * 33″ 830
P35 * 35″ 890
P42 * 42″ 1065
Length X Height

Cat No.

(IN.)

(MM.)
P48 * 48″ 1200
P54 * 54″ 1370
P60 * 60″ 1500
P63 * 63″ 1600
P70 * 70″ 1800
P74 * 74″ 1880
P83 * 83″ 2100
P86 * 86″ 2200
P96 * 96″ 2438

Shelves and post are carton packed.
For special length of posts, please consult MAXEL local sales representive.

Select a finish and place the suffix into “*” (with Cat No.)

Finish

Suffix

Eco Chrome

CE

Chrome

C

Poly Brite

EZ

Poly Green

GZ

Stainless Steel

S

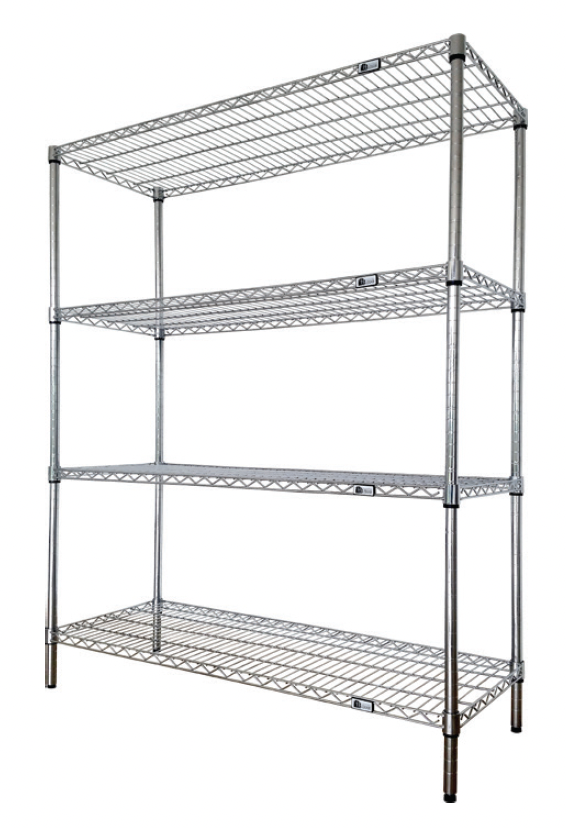

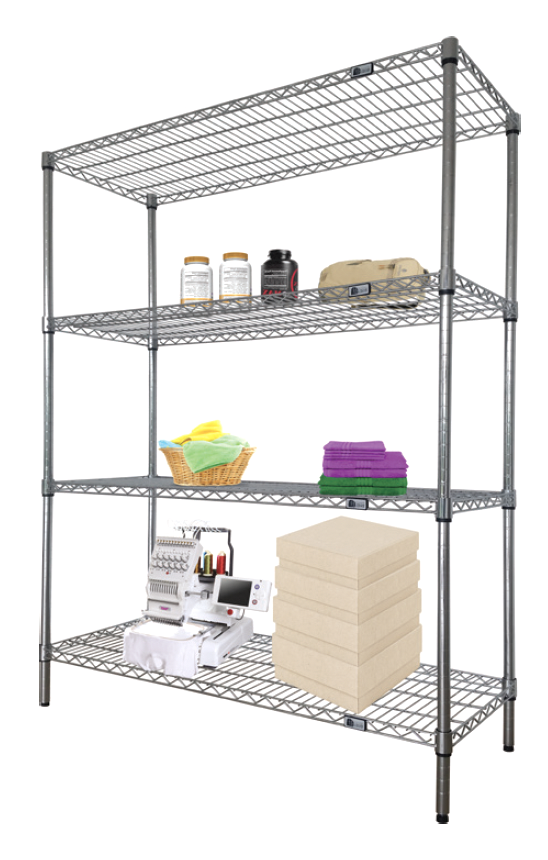

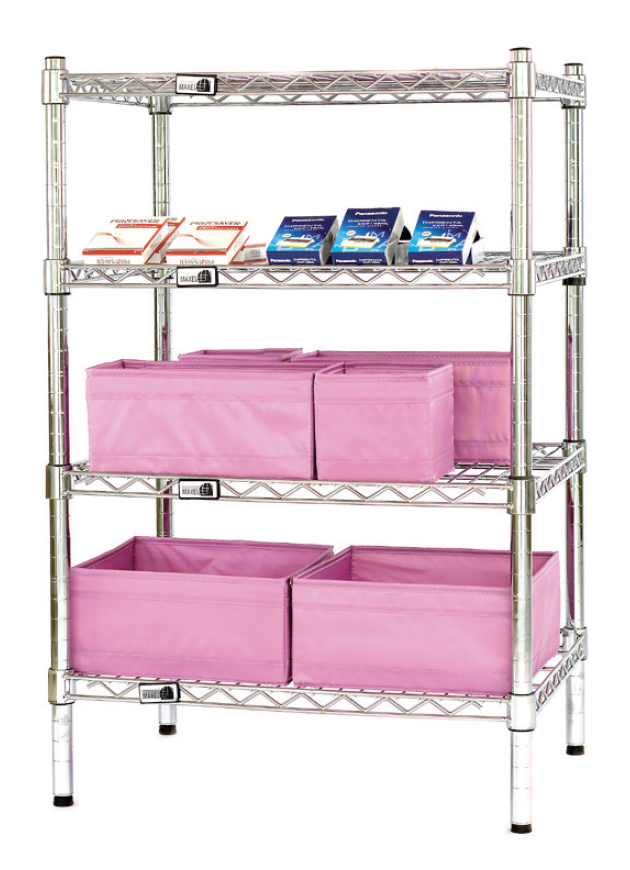

MAXEL Starter Shelving unit ~ consists of four (4) shelves and four (4) post in the height and shelf size indicated.

4 SHELVES – 60” (H)

Width X Length X Height

Cat No.

(IN.)

(MM.)

1424 *6

14 X 24 X 60

355 X 610 X 1500

1430 *6

14 X 30 X 60

355 X 756 X 1500

1436 *6

14 X 36 X 60

355 X 908 X 1500

1442 *6

14 X 42 X 60

355 X 1060 X 1500

1448 *6

14 X 36 X 60

355 X 1213 X 1500

1454 *6

14 X 48 X 60

355 X 1364 X 1500

1460 *6

14 X 60 X 60

355 X 1518 X 1500

1472 *6

14 X 72 X 60

355 X 1823 X 1500

1824 *6

18 X 24 X 60

457 X 610 X 1500

1830 *6

18 X 30 X 60

457 X 756 X 1500

1836 *6

18 X 36 X 60

457 X 908 X 1500

1842 *6

18 X 42 X 60

457 X 1060 X 1500

1848 *6

18 X 48 X 60

457 X 1213 X 1500

1854 *6

18 X 54 X 60

457 X 1364 X 1500

1860 *6

18 X 60 X 60

457 X 1518 X 1500

1872 *6

18 X 72 X 60

457 X 1823 X 1500
Width X Length X Height

Cat No.

(IN.)

(MM.)

2124 *6

21 X 24 X 60

533 X 610 X 1500

2130 *6

21 X 30 X 60

533 X 756 X 1500

2136 *6

21 X 36 X 60

533 X 908 X 1500

2142 *6

21 X 42 X 60

533 X 1060 X 1500

2148 *6

21 X 36 X 60

533 X 1213 X 1500

2154 *6

21 X 48 X 60

533 X 1364 X 1500

2160 *6

21 X 60 X 60

533 X 1518 X 1500

2172 *6

21 X 72 X 60

533 X 1823 X 1500

2424 *6

24 X 24 X 60

610 X 610 X 1500

2430 *6

24 X 30 X 60

610 X 756 X 1500

2436 *6

24 X 36 X 60

610 X 908 X 1500

2442 *6

24 X 42 X 60

610 X 1060 X 1500

2448 *6

24 X 48 X 60

610 X 1213 X 1500

2454 *6

24 X 54 X 60

610 X 1364 X 1500

2460 *6

24 X 60 X 60

610 X 1518 X 1500

2472 *6

24 X 72 X 60

610 X 1823 X 1500

4 SHELVES – 70” (H)

Width X Length X Height

Cat No.

(IN.)

(MM.)

1424 *7

14 X 24 X 70

355 X 610 X 1800

1430 *7

14 X 30 X 70

355 X 756 X 1800

1436 *7

14 X 36 X 70

355 X 908 X 1800

1442 *7

14 X 42 X 70

355 X 1060 X 1800

1448 *7

14 X 36 X 70

355 X 1213 X 1800

1454 *7

14 X 48 X 70

355 X 1364 X 1800

1460 *7

14 X 60 X 70

355 X 1518 X 1800

1472 *7

14 X 72 X 70

355 X 1823 X 1800

1824 *7

18 X 24 X 70

457 X 610 X 1800

1830 *7

18 X 30 X 70

457 X 756 X 1800

1836 *7

18 X 36 X 70

457 X 908 X 1800

1842 *7

18 X 42 X 70

457 X 1060 X 1800

1848 *7

18 X 48 X 70

457 X 1213 X 1800

1854 *7

18 X 54 X 70

457 X 1364 X 1800

1860 *7

18 X 60 X 70

457 X 1518 X 1800

1872 *7

18 X 72 X 70

457 X 1823 X 1800
Width X Length X Height

Cat No.

(IN.)

(MM.)

2124 *7

21 X 24 X 70

533 X 610 X 1800

2130 *7

21 X 30 X 70

533 X 756 X 1800

2136 *7

21 X 36 X 70

533 X 908 X 1800

2142 *7

21 X 42 X 70

533 X 1060 X 1800

2148 *7

21 X 36 X 70

533 X 1213 X 1800

2154 *7

21 X 48 X 70

533 X 1364 X 1800

2160 *7

21 X 60 X 70

533 X 1518 X 1800

2172 *7

21  X 72 X 70

533 X 1823 X 1800

2424 *7

24 X 24 X 70

610 X 610 X 1800

2430 *7

24 X 30 X 70

610 X 756 X 1800

2436 *7

24 X 36 X 70

610 X 908 X 1800

2442 *7

24 X 42 X 70

610 X 1060 X 1800

2448 *7

24 X 48 X 70

610 X 1213 X 1800

2454 *7

24 X 54 X 70

610 X 1364 X 1800

2460 *7

24 X 60 X 70

610 X 1518 X 1800

2472 *7

24 X 72 X 70

610 X 1823 X 1800

Select a finish and place the suffix into “*” (with Cat No.)

Finish

Suffix

Eco Chrome

CE

Chrome

C

Poly Brite

EZ

Poly Green

GZ

Stainless Steel

S

For 5 or more shelves units and special lengths of posts, please consult MAXEL local sales representative.
